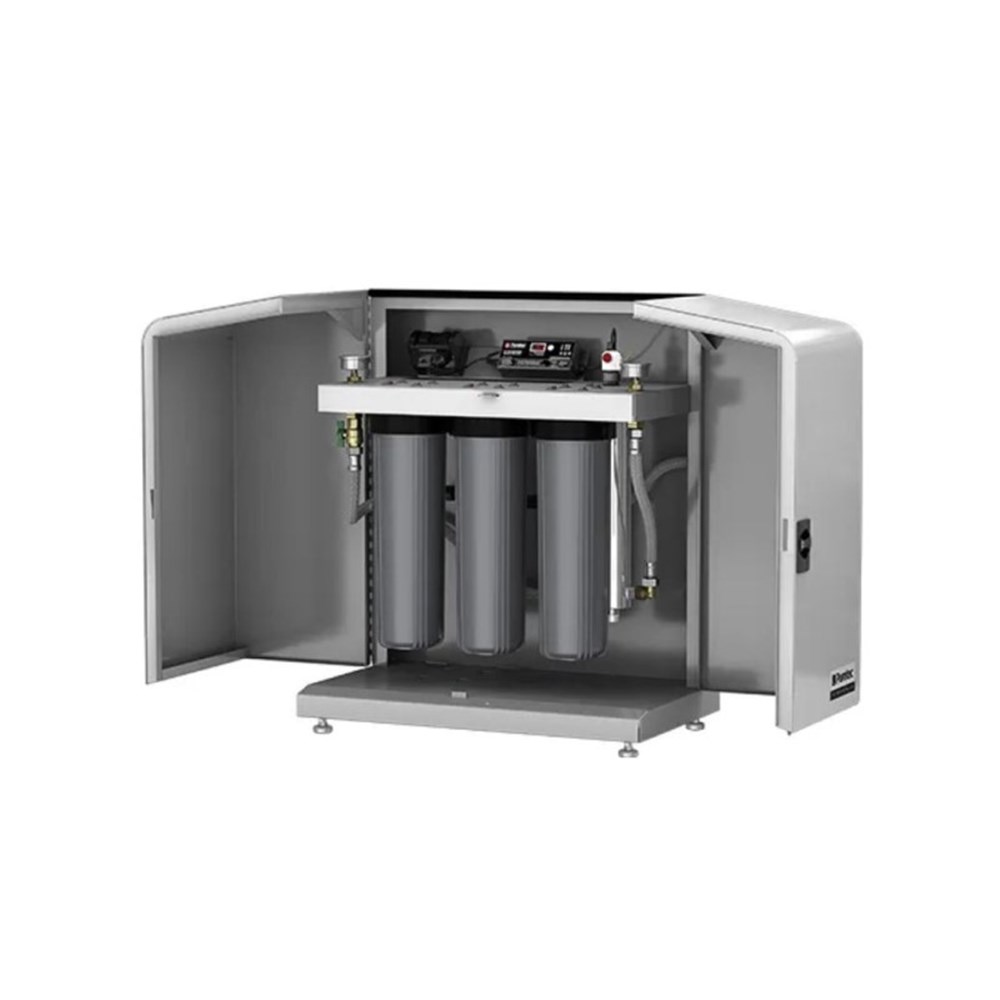

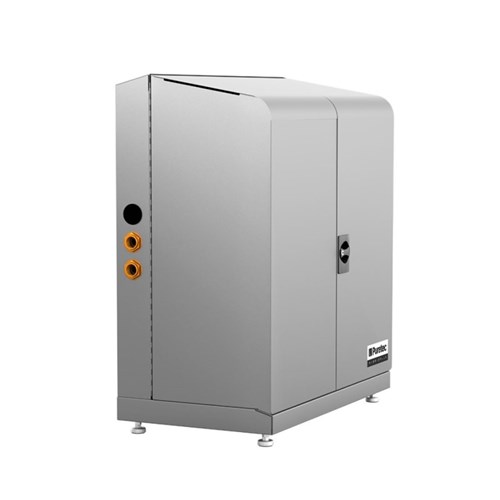

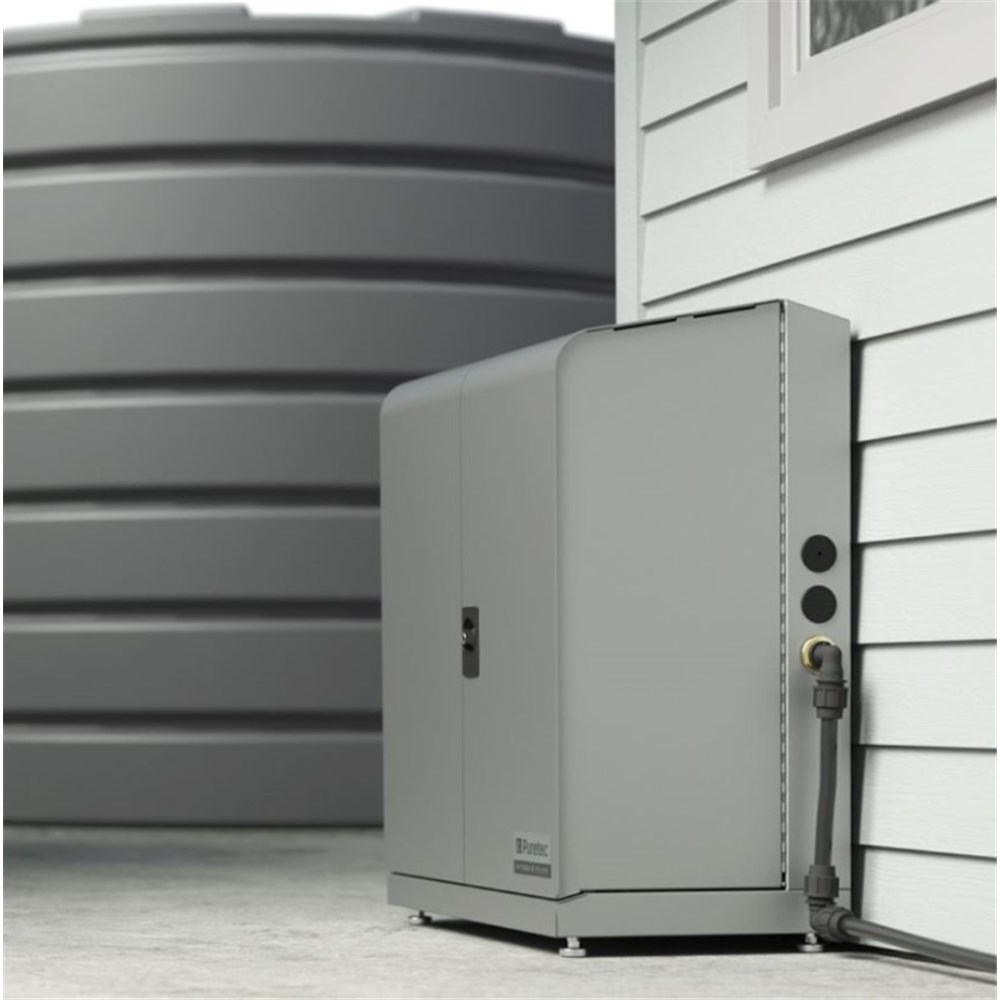

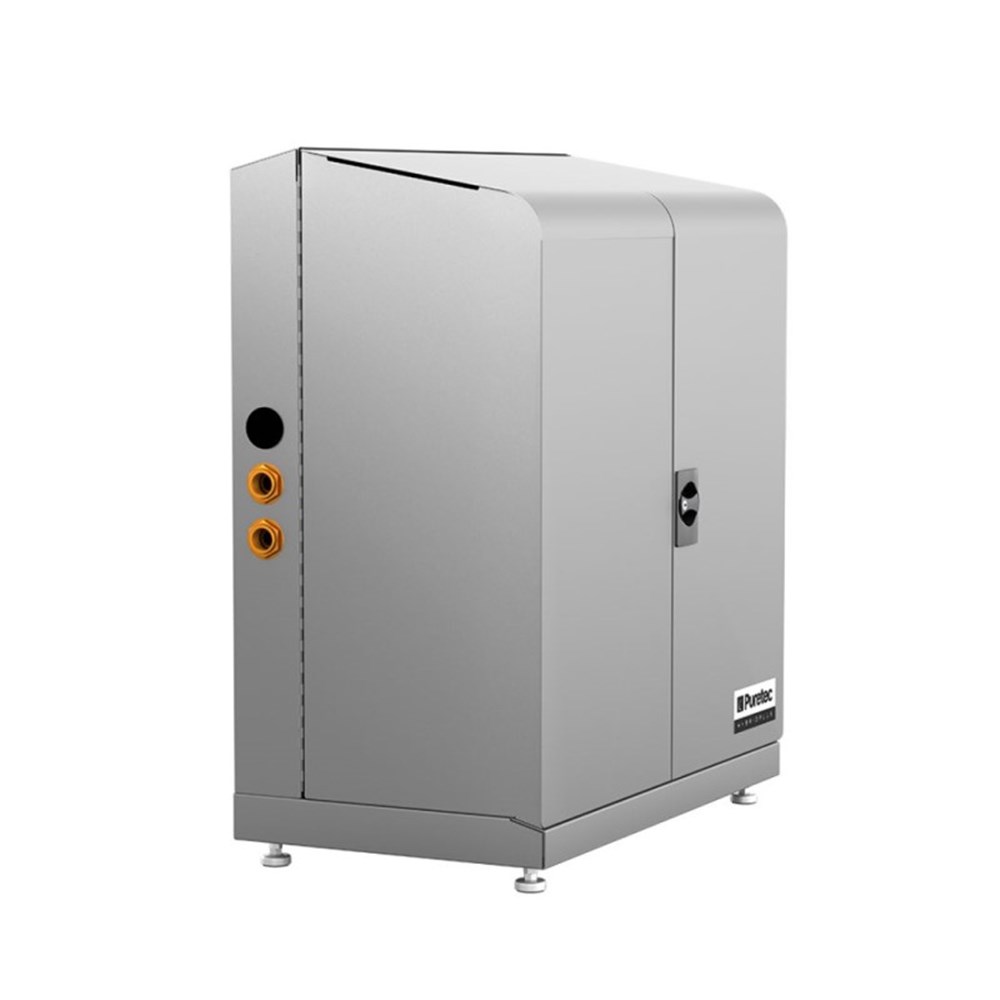

The Puretec Hybrid-P1 is an all-in-one filtration system with pump provision, 3 stage filtration and finishing with UV sterilisation. This sleek, practical and high-quality system ensures you have pressurised safe and delicious rainwater. The patented HybridPlus system is designed to sit neatly against a wall, fence or tank, or can also be freestanding. It features a lockable cabinet with gull-wing style access doors for ease of access for maintenance and also incorporates adjustable feet to ensure a neat and tidy finished installation.
Note: This model does not include a pump or switchover valve but has the allowance to install your own pressure system into the unit.
Max pump dimensions: 560 (H) x 540 (W) x 240 (D) mm
Replacement Cartriges:
Stage 1 Filtration: PL05MP2
Stage 2 Filtration: CB05MP2
Stage 3 Filtration: PX01MP2
UV Lamp, 46W: RL6
Quartz Sleeve: RQS6
Grundfos Pump Model: not included
Rated Power: N/A
Pressure Controller: not included
Maximum Current Consumption: -
Water Temperature Range: 0-52° (protect from freezing)
Self Priming: 4m
UV Dosage @40mJ/cm²: 54Lpm
UV Dosage @30mJ/cm²: 70Lpm
UV Dosage @16mJ/cm²: 130Lpm
Pump Flow Rate: -
Connection: 1" BSP (25mm)
Warranty: 3 Years
