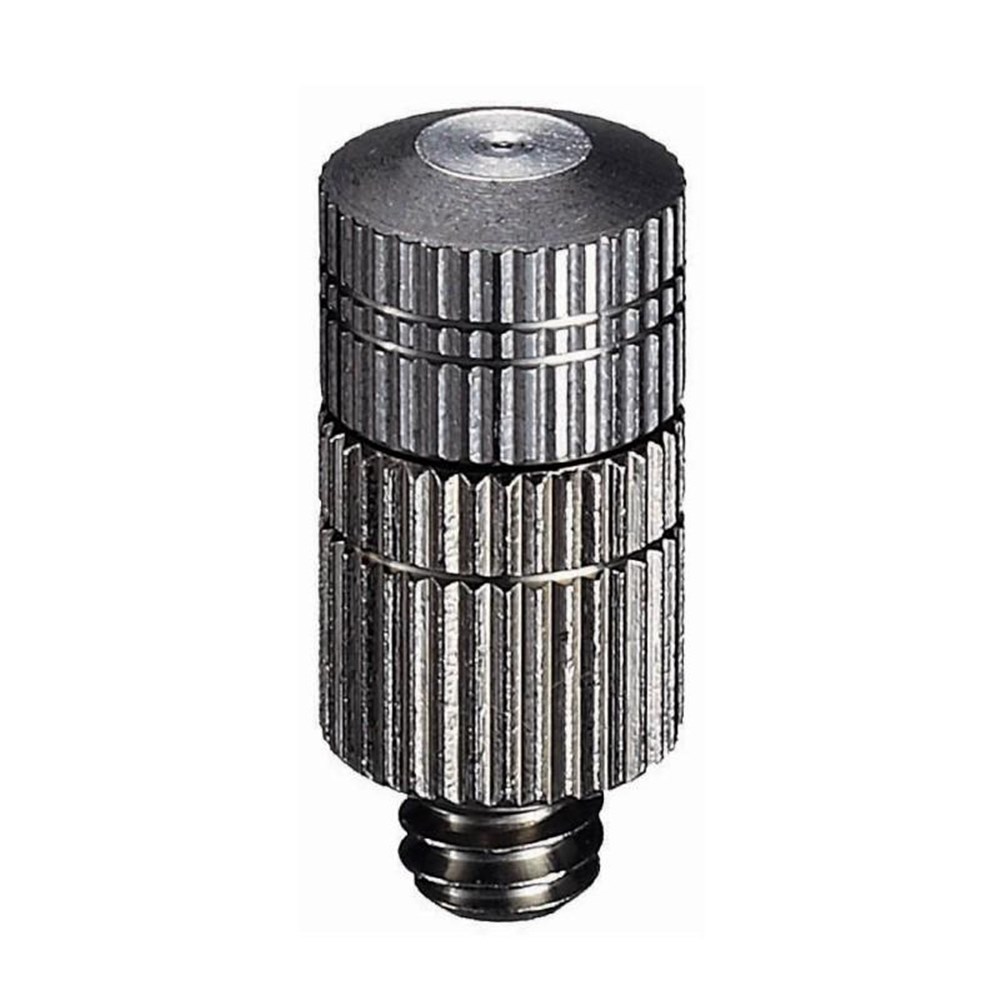

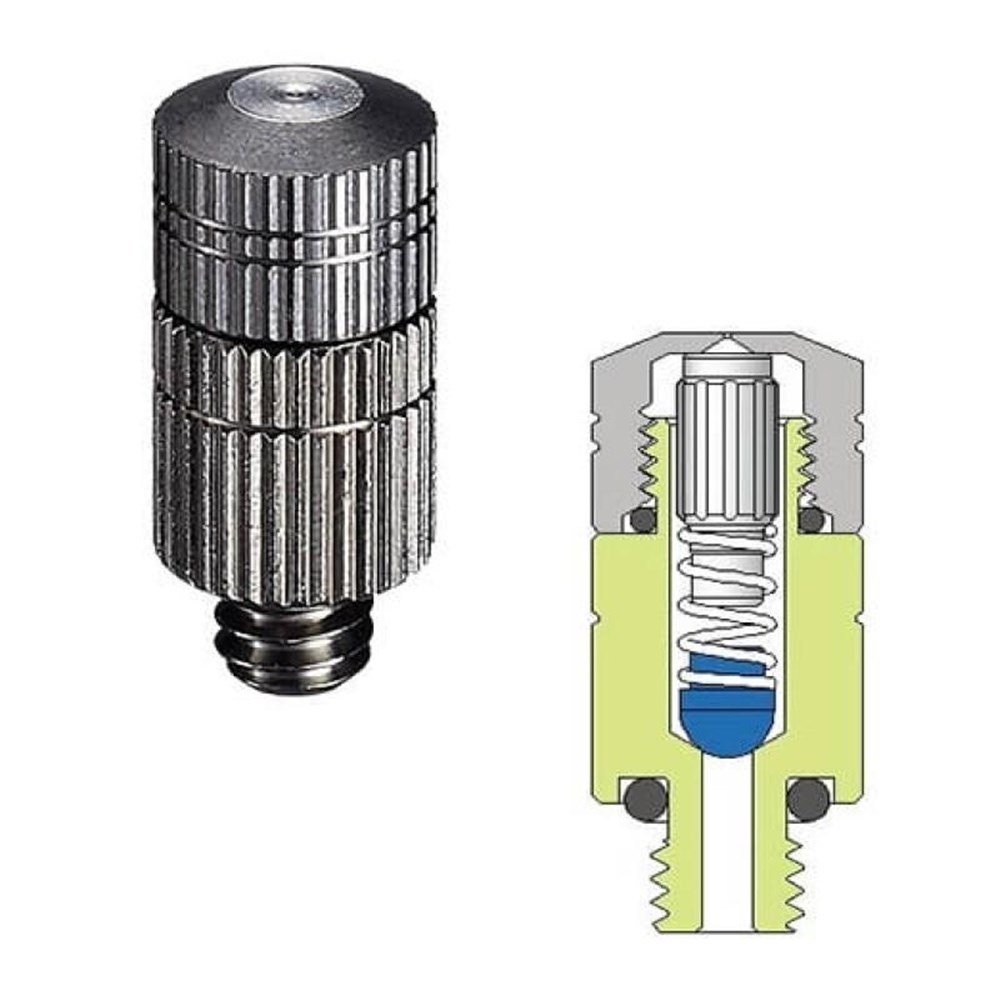

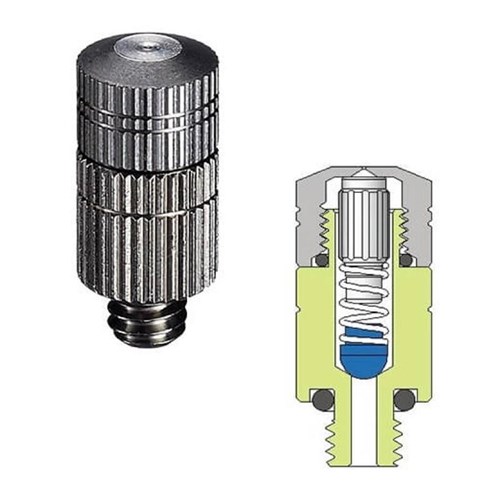

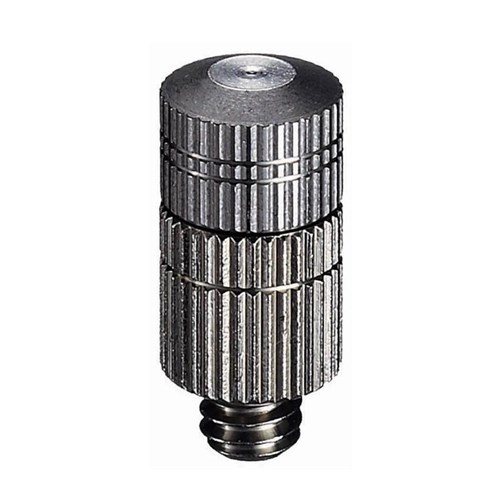

ATN cleanable high pressure fog nozzles with Stainless Steel head, Nickel plated Brass body and removable impeller diffuser. The newer engineered design allows the nozzle to deliver a more stable performance due to its internal engineered design, note the sealing O-Ring is not part of the Stainless Steel head.
This atomising nozzle can produce uniform micron sized water particles to manage temperature and humidity.
Orifice: 0.20mm / 0.008"
Thread No.: 12/24unc/2A
O-Ring Material: 1st- NBR 2nd- NBR
Anti-Drip: Dia 0.6mm Stainless Steel spring + EPDM ball
Filter: No Filter Optimum Atomising Pressure: 800-1000 PSI (5500-6900kPA)
Note: The flow rate may vary depending on operating pressure, fluid viscosity and fluid density.
