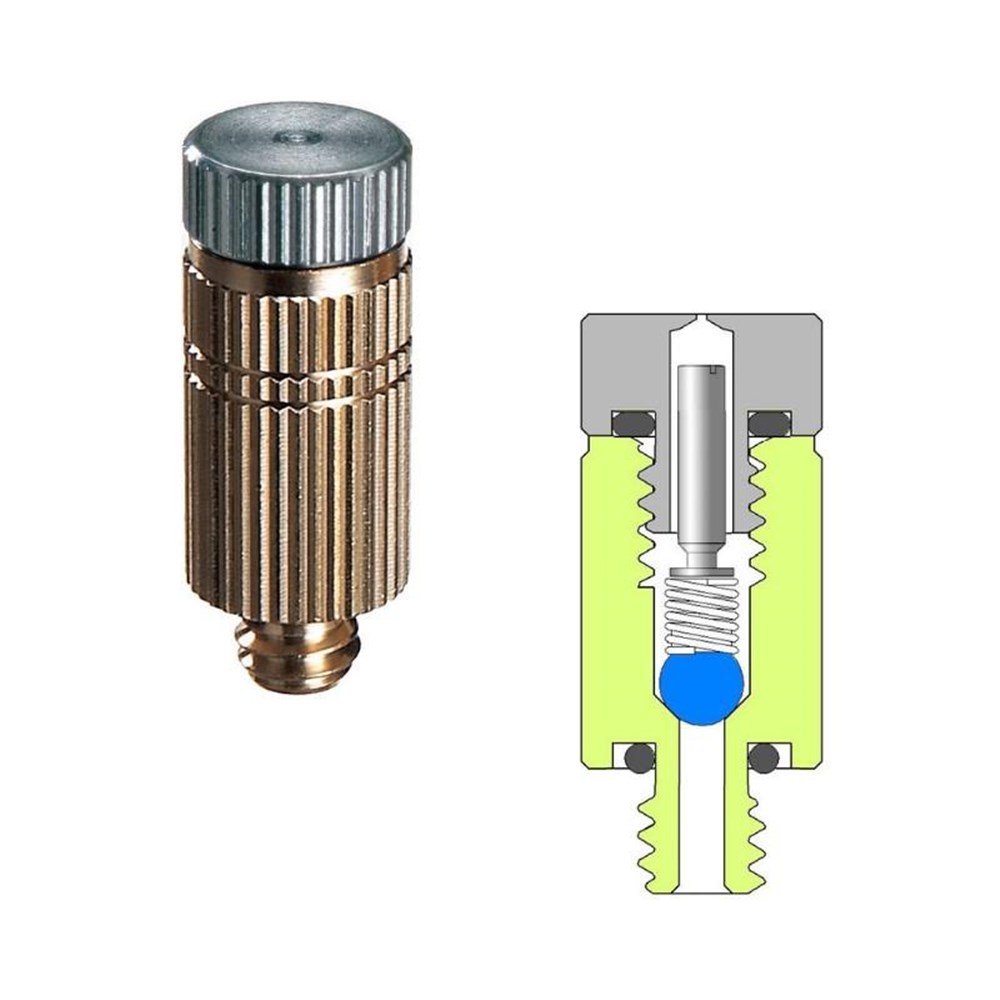

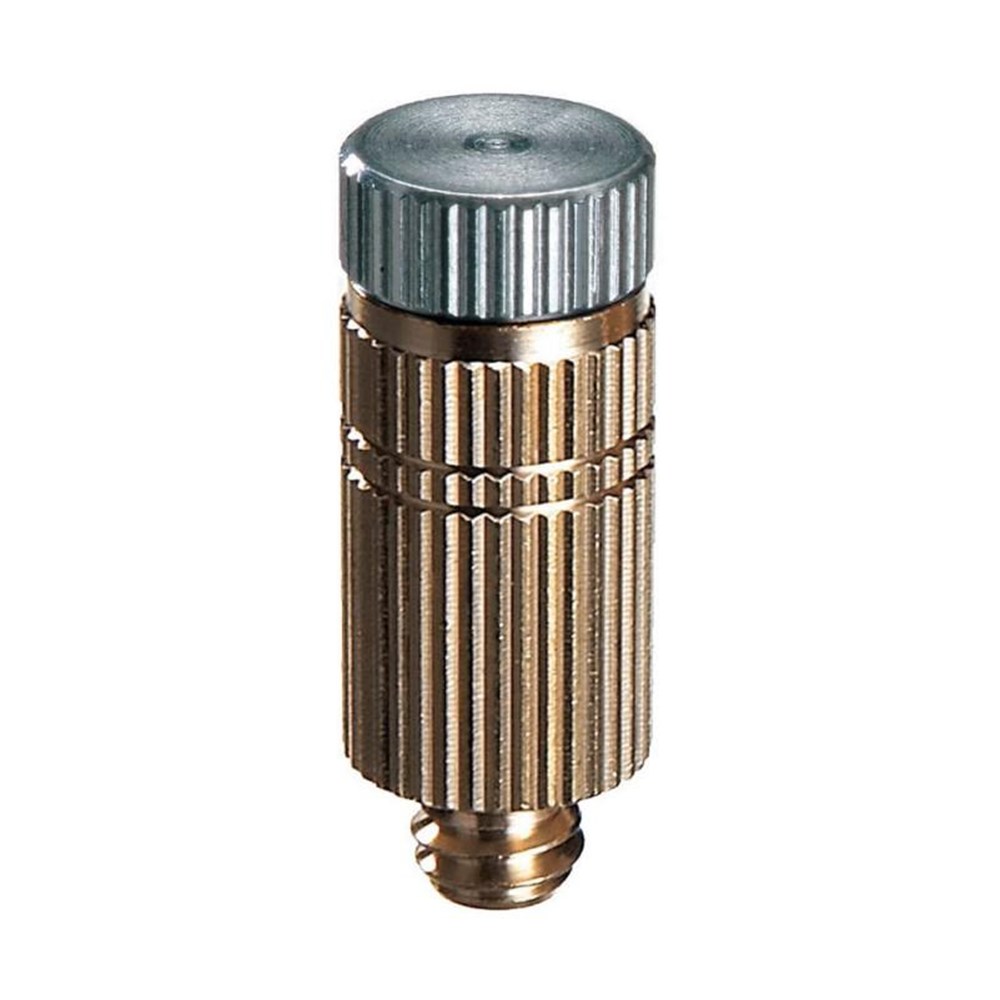

NFN cleanable high pressure fog nozzles with Stainless Steel head, Brass body and T-type removable impeller plate. This atomising nozzle can produce uniform micron sized water particles to manage temperature and humidity.
Orifice: 0.20mm / 0.008"
Thread No.: 12/24unc/2A
O-Ring Material: 1st- NBR 2nd- NBR
Anti-Drip: Dia 0.55mm Stainless Steel spring (Length 8mm) + EPDM ball
Filter: No Filter
Optimum Atomising Pressure: 800-1000 PSI (5500-6900kPA)
Note: The flow rate may vary depending on operating pressure, fluid viscosity and fluid density.
