Robust body and cap are made of glass-filled polypropylene and provide 150 psi (10.3 bar) pressure rating
30 or 40 psi pressure regulator is integrated into the filter body
Static RBY filter regulates pressure to a nominal 30 or 40 psi (2.0 or 2.8 bar)
The Filter Cap has sealing O-ring and unthreads to provide access to the filter element for easy cleaning

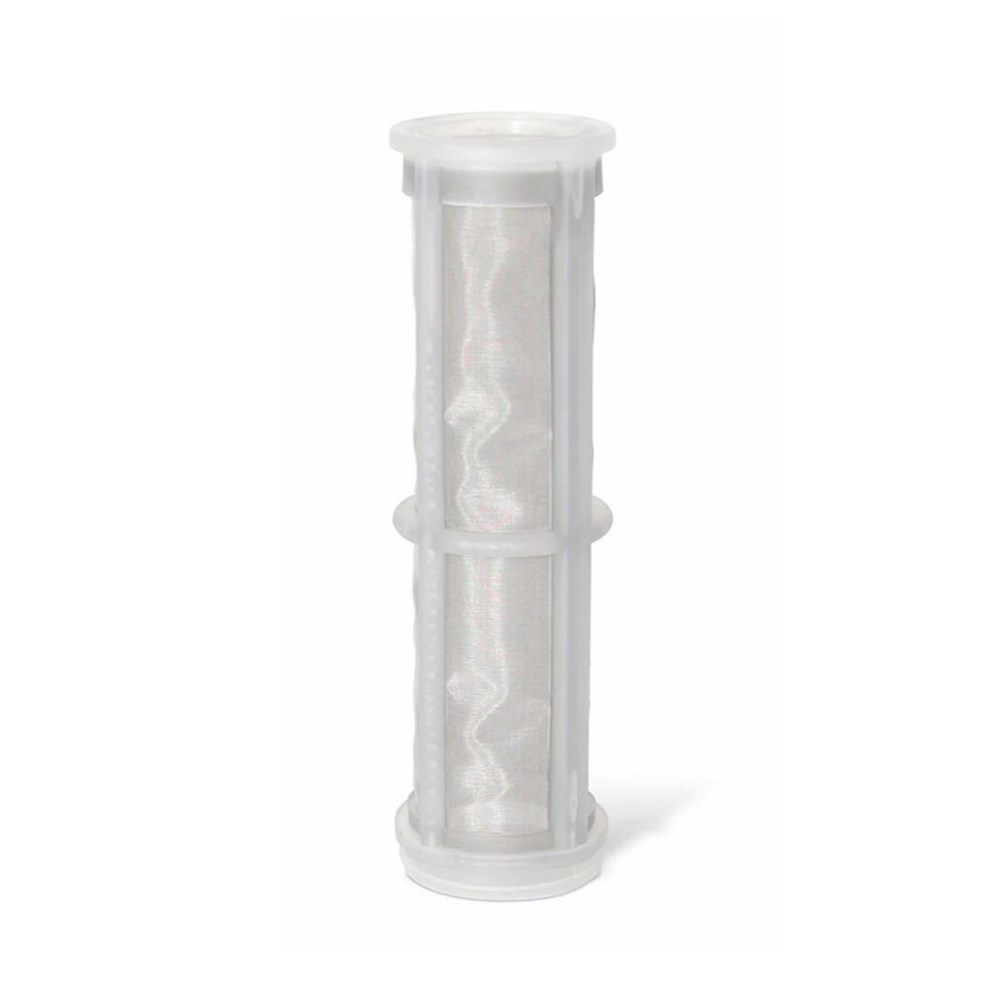

Combination unit comes with 200 mesh (75 micron) stainless steel reduces the number of connections, making installation easier and faster
Inlet pressure: 20 to 150 psi (1.4 to 10.3 bar)
Regulated pressure: - 3/4" unit: 30 psi (2.1 bar) - 1" unit: 40 psi (2.8 bar)
Flow - 3/4" units: 0.20 to 5.0 gpm (0.8 to 18.9 l/m) - 1" units: 3.0 to 15.0 gpm (11.4 to 56.8 l/m)

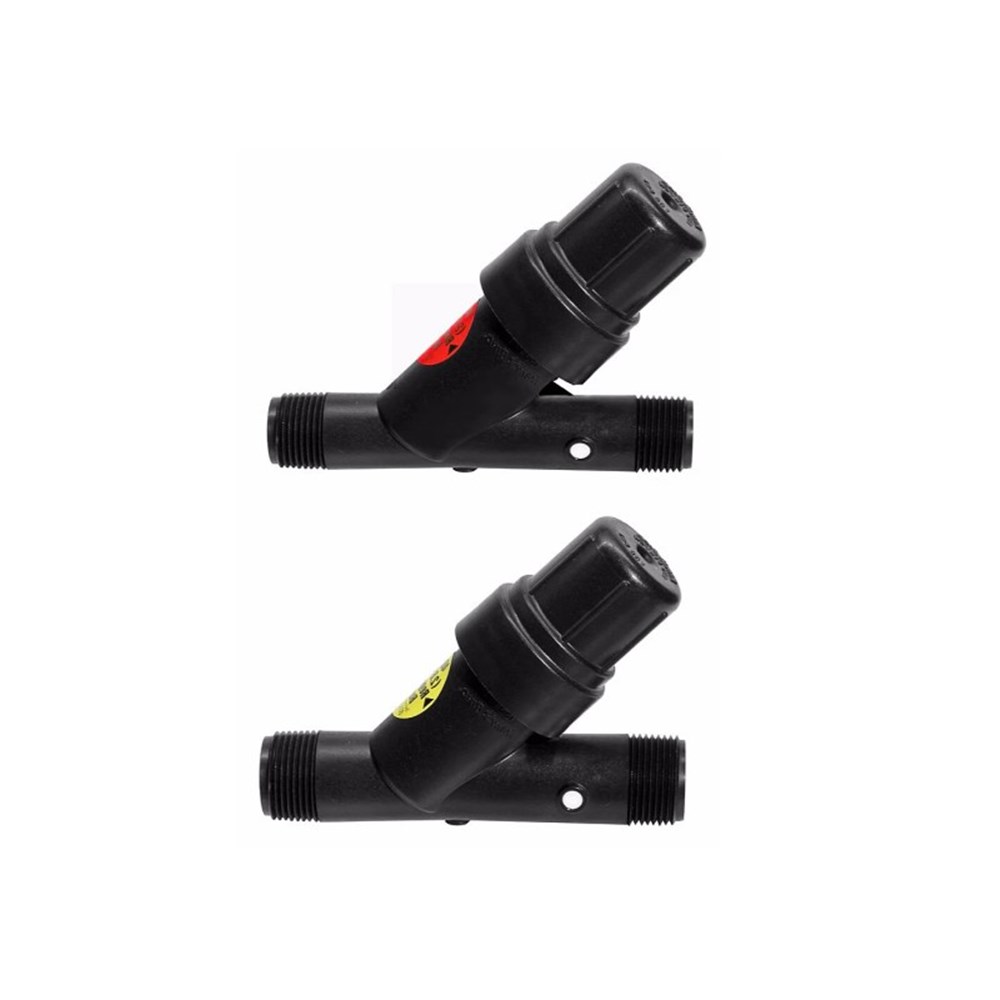

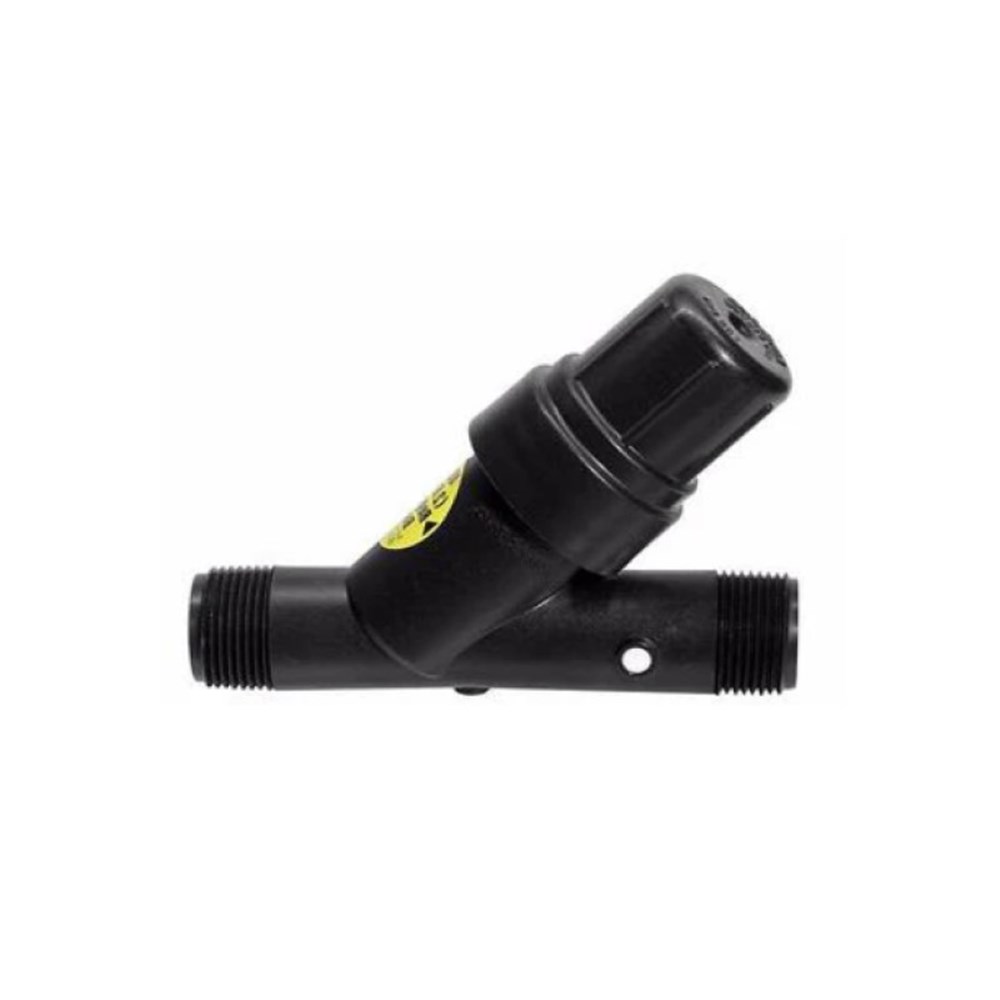

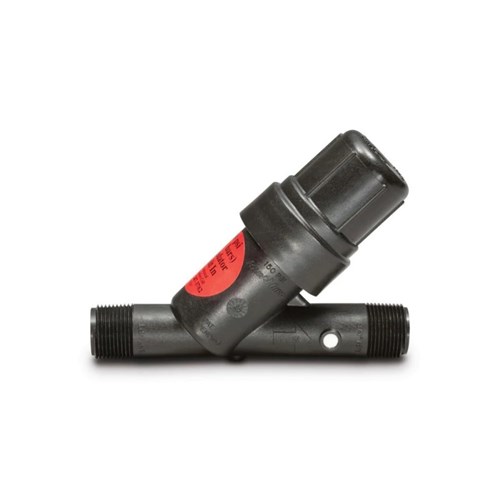

The Rain Bird Pressure Regulating Filter is a unique, compact unit that works with all valves to create a simple, efficient control zone.  Combines filtration and pressure regulation in one piece for protection of downstream components in a low-volume irrigation system.
