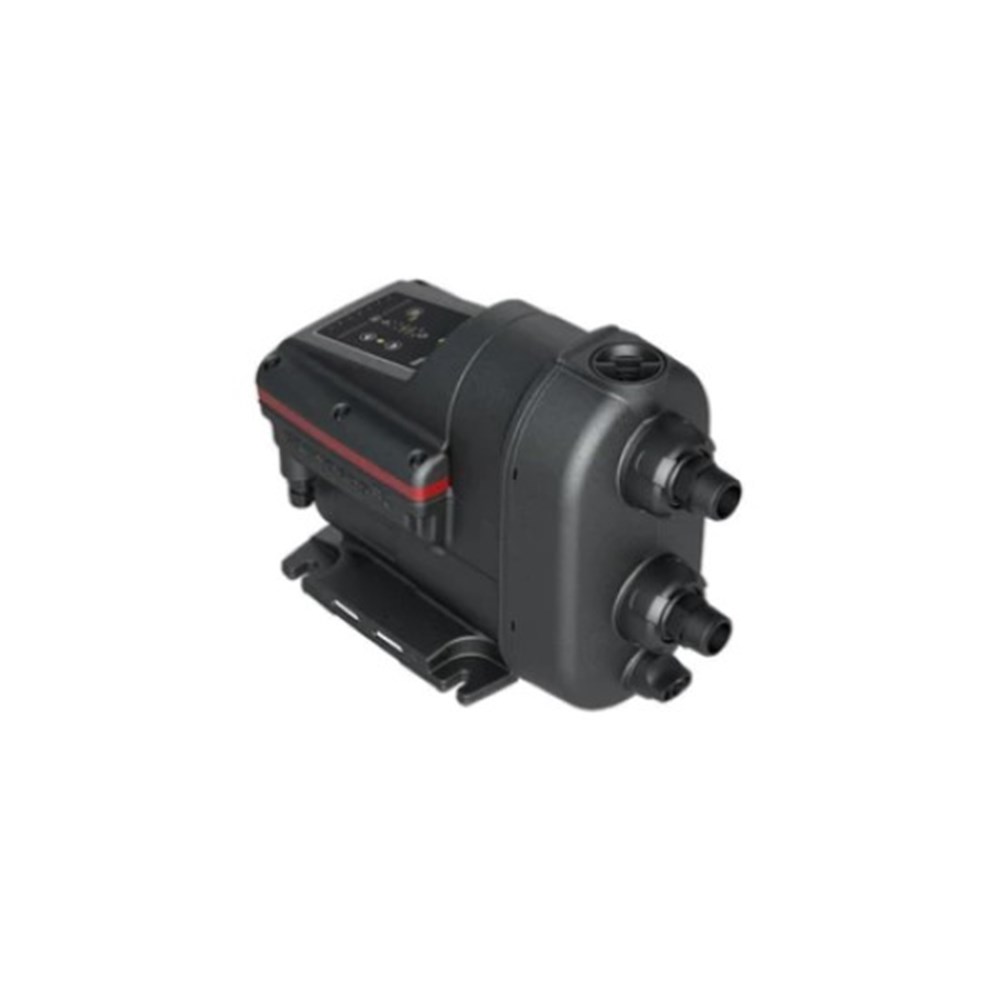

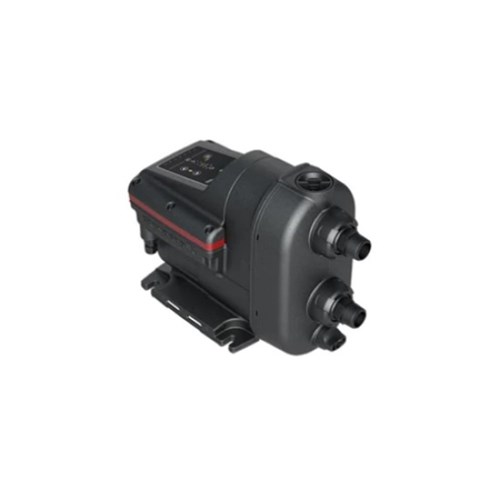

The Grundfos SCALA23-45 Pressure Pump is a fully integrated, self-priming, compact waterworks for pressure boosting in domestic applications. The Grundfos SCALA2 incorporates integrated speed control enabling the keeping of the perfect pressure at the taps, meaning that the pump performance will increase with increasing demand.
The Grundfos SCALA23-45 Pressure Pump is able to pump water from a level below the pump. Provided it is filled with water, the pump is able to lift water from a depth of 8 meters in less than 5 minutes. This facilitates easy installation and pump starting and provides more reliable water supply in installations where there is a risk of dry running and leakages in suction hose or pipes.
The Grundfos SCALA23-45 Pressure Pump requires no maintenance, but it is recommended to keep the pump clean, check the non-return valves and keep the ventilation holes free of dust.
Motor / power (P1): 550W
Max. flow: 78T/min
Head: 45m
Inlet: 1″M / 25mm
Outlet:1″M / 25mm
Pressure: 470kPa
Impeller: Composite
Start pressure: PM1 – 1.5 bar
Suitable Applications:
- Commercial Water Pressure Boosting
- Domestic Ground Water Intake
- Household water supply
- Pressure boosting from above ground water tanks
- Pressure boosting from below ground water sources eg. Below ground tank/dam
