Smart monitoring and irrigation solutions to realise the highest quality at the lowest cost p/m3
Priva units allow you to achieve a stable pH and EC of your irrigation water. The right pH level at the rootzone is essential for optimal uptake of nutrients. This prevents deficiencies and diseases and promotes excellent plant productivity. The correct balance of water and nutrients at the right time means the valuable components are being used as effectively as possible.
This is achieved with the advanced controls and robust and reliable water solutions in a fertigation system.
Whether you require a single stand alone battery-operated controller or all the way up to wireless multi-stations, for web-based irrigation and fertigation systems, Irribiz have the solution.
Our range of fertigation systems allow for accurate and reliable dosing that allows you to keep control 24/7.
They are designed to increase yield with optimal irrigation while conserving water resources and reducing energy consumption.
PRIVA IRRIGATION - NUTRI ONEAn entry level fertiliser dosing unit for soil and large volume sunstrate containers. Nutri One covers main line capacities up to 120 m3 p/hr and has up to four dosing channels, enabling you to quickly switch between different fertiliser recipes, adjusting both the type and amount on demand.Integrate with Priva Compass Climate Control to cover a wide variety of irrigation system setups. Like all Priva equipment, the Nutri One is based on components used in high-tech horticulture and is extremely durable and requires very little maintenance.Advantages
Specially designed for soil-based crops and large substrate containersEasily integrated in existing irrigation systems, particularly when dosing in bypass modeEfficient fertiliser dosingFlexibility in configuration of dosing channelsLow maintenance
General Specifications
Mainline flow 3 – 120 m3/hr
Mainline pressure 2.5-7bar
4 dosing channels;
30-300/60-600 litres p/hr, single and double
Irrigation Management
Controls up to 250 valves when integrated
Compass multi-climate controller
Fertiliser recipes
Up to 10 irrigation strategies
Up to 10 moisture sensors
Automated water pre-treatment
Custom control programs
Insights anytime, anywhereClear and intuitive dashboards and graphsMonitor and improve strategiesInsight via an internet browserResponsive design for smartphone, tablet and PC
Service and KnowledgeOnline help functionalityDo it yourself maintenanceWide partner network for fast serviceOnline training via Priva Academy
Priva Nutri One Brochure

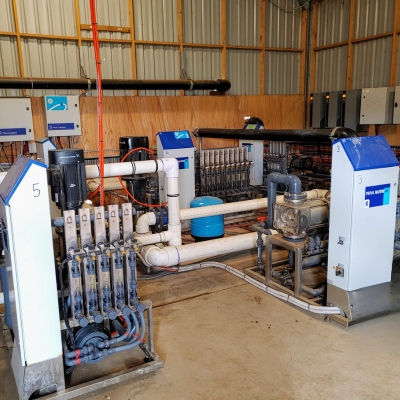

PRIVA FERTIGATION - NUTRI JET
Efficient fertiliser dosing via direct injection
The Priva Nutri Jet is a good alternative to a mixing tank system as it injects up to ten individual nutrients directly and simultaneously into the irrigation water. A major advantage is that an extra freshwater pump is not necessary.
Dissolved fertilisers are injected from the fertiliser tanks into mixing chambers with irrigation water. The result is a highly concentrated solution, injected into the irrigation line where it is then diluted with the mainstream to the desired EC and pH concentration.
Flexible and Efficient
The Nutri Jet system design allows for either in-line or by-pass configurations. It is available in several sizes and capacities from 5 m3/hr to over 80 m3/hr. As the Nutri Jet uses only one pump, the system is very energy efficient and easy to integrate into existing configurations.
Advantages
Efficient direct fertiliser dosing for all types of crops
Flexible choice in pump and number of fertilisers
Accurate, reliable and compact system
Various expansion options
Lowest cost per m3
Specifications
Dosing in a mixing chamber
One or two mixing chambers with up to 5 dosing channels each
Capacity 5-80 m3/hr in In-line layout
Capacity above 100 m3/hr in by-pass layout
Efficient recipe change by small volume
Dual EC and pH measurements for maximum reliability
1-10 dosing channels; 300 or 600 litres/hr

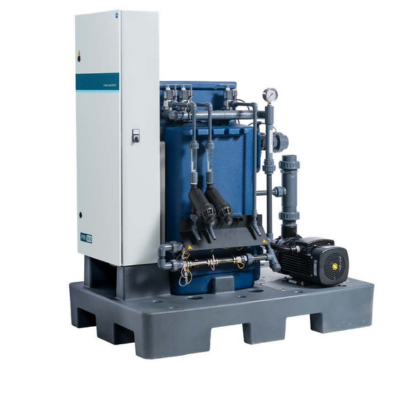

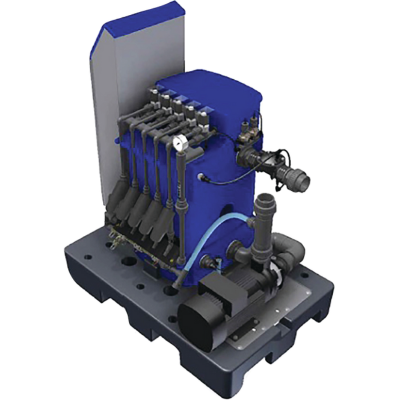

PRIVA FERTIGATION - NUTRI FIT
Accurate and affordable fertiliser dosing with drain water re-use function.
Priva Nutri Fit is a compact fertiliser dosing system with a mixing tank ensuring the crop gets the right amount of water and nutrient recipe at the correct pH and EC, at the right time.
Saving costs by reusing drain water - to prevent wasting costly fertilisers, the process computer has built-in functions to control the pre-mixing of collected run-off water with fresh water. Generally, savings of 30-40% on water and fertiliser are achieved with this reuse function and preventing unnecessary environmental pollution.
Advantages
Efficient fertiliser dosing for all types of crop
Flexible choice in pump and number of fertiliser dosing channels
Accurate and reliable
Self-supporting compact system
Various expansion options
Lowest cost per m3
Flexible and efficient
Nutri Fit is easy to integrate into existing configurations and provides efficient solutions for small to medium sized operations. A pump selection can be made, to fit your specific needs regarding your capacity and pressure, ranging from 5 – 25 m3/h
Safe and reliable method
Fertiliser tanks are connected to the Priva Nutri Fit containing soluble nutrients that are injected into a mixing tank with more water before being pumped to the crop. The Nutri Fit can mix a maximum of five solutions simultaneously, e.g. four fertiliser solutions and one acid/alkali solution. The dual EC and pH measurements provide maximum reliability and nutrient availability for the crop. The Nutri Fit can be controlled by an integrated process computer or an external Priva process computer.
General Specifications
Mixing tank system
Capacity 5 to 25 m3/hr
Dual EC and pH measurements for maximum reliability
100 litre mixing tank
1-5 dosing channels; 30-300 litres/hr

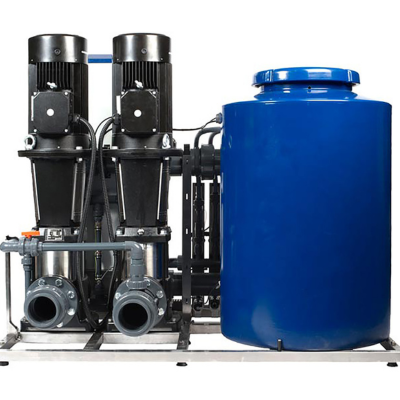

PRIVA FERTIGATION - NUTRI FLEX
Smart, flexible and accurate fertiliser dosing for hydroponic growing systems.
The Nutri Flex first doses the fertilisers into a mixing tank with fresh water, just like the Nutri Fit, however with a greater capacity of up to 80 m3/hr. The number of dosing channels is also once again modular but now can be expanded to a maximum of ten inputs. For example, nine different nutrient components and an acid / alkali solution. This makes the Nutri Flex extremely suitable for hydroponic growing systems.
Specifications
Dosing in a mixing tank
Capacity 10 to 80 m3/hour
Greater capacity on request
Dual EC and pH measurements for maximum reliability
300 litre tank
1 -10 dosing channels; up to 600 litres/hr

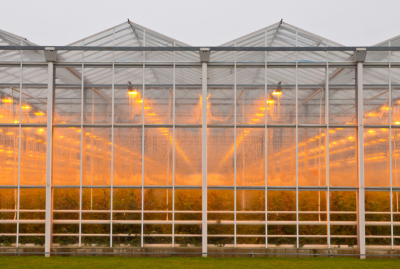

TOTAL INTEGRATION
The Priva Nutri-line fertigation systems can function as a stand-alone unit or be centrally controlled by a Priva ‘process computer’, also known as a ‘climate controller’, and possibly also by one of a different brand. This allows you to link your systems even further to cross reference and manage all sorts of parameters including water, nutrient recipes, climate and energy consumption. Such management information provides extensive insight and data driven decisions for optimum crop production.

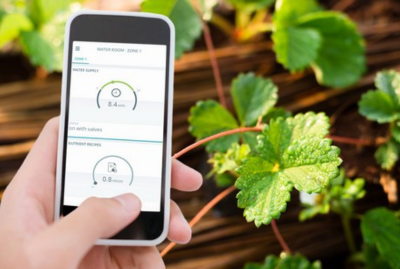

PRIVA CLIMATE CONTROL
As a grower, you never stop trying to increase the yield and improve the quality of your crop. With horticultural automation you can keep your finger on the pulse of the whole operation whilst, at the same time, minimise your production costs. Data driven knowledge is power. You need to quickly see status reports so you can control temperature, ventilation, screens, fans, fog, lights, heating and boiler control. On the same token you need to be able adjust irrigation and fertigation accordingly. And you need to be able to set certain parameters to let the system control climate and water systems for you. To get the most out of your growing systems and installations, a process computer to integrate all your climate and irrigation data is an essential part of cultivation. And it needs to be flexible and able to adapt to your expectations and any changes ahead. Reliability is key, but of course, you want a computer that is user-friendly, too. After all, you’ll be using it every day, so you want it to be easy to operate.
PRIVA COMPASS
An affordable integrated environmental control system for small and medium sized growing operations. The Priva Compass process computer is a user-friendly starter computer that can control irrigation, climate, photosynthesis, water and energy for four compartments. Compass controllers can also be linked via a network to expand capacity beyond the four compartments.
Advantages
Starter computer for small and medium sized growing operations
Flexible: you can select the modules and the level you need
Clear controls with dashboards and graphs
Local operation possible via the cloud or via Wi-Fi (remote)
Suitable for smartphones, tablets and PCs
High-tech at an affordable price with Priva quality and reliability
Online and offline help function
Learn more about Priva Compass

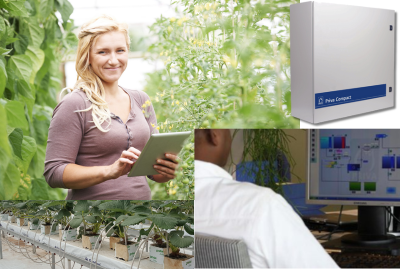

PRIVA COMPACT
Suitable for all types of crops and greenhouses including the reuse of drainage water.
The Priva Compact process computer incorporates the perfect basic controls for climate and water dosage in combination with a simple operation. It provides you with a reliable and user-friendly base in climate control and is suitable for controlling various greenhouse systems. The Priva Compact is the “smaller brother” of the Priva Connext process computer and it uses the same hardware.
The software controls of Priva Compact enable growers to manage the essential growing conditions in the greenhouse, 24/7, including ventilation, heating, curtains, CO2, fans, humidification, lighting, boilers, irrigation, fertiliser dosage and the reuse of drainage water.
Features
Integrated controller for your systems in open field or greenhouse production
Intuitive control which makes sure the settings of your irrigation, fertigation or climate systems stay steady over time
Easily expanded inputs and outputs to cope with expansion
User friendly operation and installation
Easy upgrade to Priva Connext

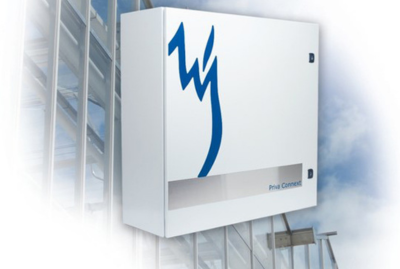

PRIVA CONNEXT
Hi-tech greenhouse automation to integrate all control into one system.
Priva Connext is the most advanced process computer from Priva that supports you in controlling and managing processes in and outside your greenhouse including climate, energy and water management. It allows you to create a single, central network of all your greenhouse mechanisms and data. It links all your systems and controls into a single network which can be monitored both locally and remotely, making it easy to identify, manage and rectify any issues now and into the future. With its extensive control module library, Connext automatically anticipates all relevant circumstances and events, letting you focus your attention on your crop.
Features:
Overview of all greenhouse processes
Optimise the control of climate, heating, irrigation, fertigation and water treatment
Provides communication between all controllable parts of your greenhouse
In-built self-checking and alarms ensure data driven continuity in your crop and production
Optional integration with the Priva FS Performance to view and compare your data
Reliability
Priva Connext continuously monitors whether your systems are working correctly, and all actions are being performed properly. In the case of a malfunction, the systems are automatically placed in a safe mode and an alarm is issued immediately. All data is automatically saved in the event of a power supply failure. At all times, you will have a reliable system using dedicated horticultural hardware.
Extensive control module library
More than 50 years of experience in horticultural automation has been merged in the Priva Connext so that you have the right controls at your disposal. With tailor-made programs, each application can be set up according to your wishes and ideas.
Connected
Priva Connext offers a reliable platform in which all your sensors and systems come together in one central network. You can also enhance your business operations by making a link to Priva FS Performance. This link enables you to combine climate data with labour, production and plant data.
|
